Dealing with heteroskedasticity; regression with robust standard errors using R Exporting editable plots from R to Powerpoint: making ggplot2 purrr with officer Forecasting my weight with R Getting data from pdfs using the pdftools package Going from a human readable Excel file to a machine-readable csv with {tidyxl} How Luxembourguish residents spend their time: a small {flexdashboard} demo using the Time use survey data Imputing missing values in parallel using {furrr} Missing data imputation and instrumental variables regression: the tidy approach The year of the GNU+Linux desktop is upon us: using user ratings of Steam Play compatibility to play around with regex and the tidyverse {pmice}, an experimental package for missing data imputation in parallel using {mice} and {furrr} Building formulae Functional peace of mind Get basic summary statistics for all the variables in a data frame Getting {sparklyr}, {h2o}, {rsparkling} to work together and some fun with bash Importing 30GB of data into R with sparklyr Introducing brotools It's lists all the way down It's lists all the way down, part 2: We need to go deeper Keep trying that api call with purrr::possibly() Lesser known dplyr 0.7* tricks Lesser known dplyr tricks Lesser known purrr tricks Make ggplot2 purrr Mapping a list of functions to a list of datasets with a list of columns as arguments Predicting job search by training a random forest on an unbalanced dataset Teaching the tidyverse to beginners Why I find tidyeval useful tidyr::spread() and dplyr::rename_at() in action Easy peasy STATA-like marginal effects with R Functional programming and unit testing for data munging with R available on Leanpub How to use jailbreakr My free book has a cover! Work on lists of datasets instead of individual datasets by using functional programming Method of Simulated Moments with R New website! Nonlinear Gmm with R - Example with a logistic regression Simulated Maximum Likelihood with R Bootstrapping standard errors for difference-in-differences estimation with R Careful with tryCatch Data frame columns as arguments to dplyr functions Export R output to a file I've started writing a 'book': Functional programming and unit testing for data munging with R Introduction to programming econometrics with R Merge a list of datasets together Object Oriented Programming with R: An example with a Cournot duopoly R, R with Atlas, R with OpenBLAS and Revolution R Open: which is fastest? Read a lot of datasets at once with R Unit testing with R Update to Introduction to programming econometrics with R Using R as a Computer Algebra System with Ryacas

Predicting job search by training a random forest on an unbalanced dataset

In this blog post, I am going to train a random forest on census data from the US to predict the probability that someone is looking for a job. To this end, I downloaded the US 1990 census data from the UCI Machine Learning Repository. Having a background in economics, I am always quite interested by such datasets. I downloaded the raw data which is around 820mb uncompressed. You can download it from this folder here.

Before training a random forest on it, some preprocessing is needed. First problem: the columns in the data do not have names. Actually, training a random forest on unamed variables is possible, but I like my columns to have names. The names are on a separate file, called USCensus1990raw.attributes.txt. This is how this file looks like:

VAR:        TYP:   DES:    LEN:   CAT:    VARIABLE/CATEGORY LABEL:
__________________________________________________________________________________
HISPANIC     C       X      3             Detailed Hispanic Origin Code See Append
                                  000     Not Hispanic 006 199
                                  001     Mexican, Mex Am 210 220
                                  002     Puerto Rican 261 270
                                  003     Cuban 271 274
                                  004     Other Hispanic 200 209, 250 260, 290 401

VAR:        TYP:   DES:    LEN:   CAT:    VARIABLE/CATEGORY LABEL:
__________________________________________________________________________________
HOUR89       C       X      2             Usual Hrs. Worked Per Week Last Yr. 1989
                                  00      N/a Less Than 16 Yrs. Old/did Not Work i
                                  99      99 or More Usual Hrs.

VAR:        TYP:   DES:    LEN:   CAT:    VARIABLE/CATEGORY LABEL:
__________________________________________________________________________________
HOURS        C       X      2             Hrs. Worked Last Week
                                  00      N/a Less Than 16 Yrs. Old/not At Work/un
                                  99      99 or More Hrs. Worked Last Week

VAR:        TYP:   DES:    LEN:   CAT:    VARIABLE/CATEGORY LABEL:
__________________________________________________________________________________
IMMIGR       C       X      2             Yr. of Entry
                                  00      Born in the U.S.
                                  01      1987 to 1990
                                  02      1985 to 1986
                                  03      1982 to 1984


                                  04      1980 or 1981
                                  05      1975 to 1979
                                  06      1970 to 1974
                                  07      1965 to 1969
                                  08      1960 to 1964
                                  09      1950 to 1959
                                  10      Before 1950

The variable names are always written in upper case and sometimes end with some numbers. Regular expressions will help extract these column names:

library(tidyverse)

census_raw = import("USCensus1990raw.data.txt")

attributes_raw = readLines("USCensus1990raw.attributes.txt")

column_names = str_extract_all(attributes_raw, "^[A-Z]+(\\d{1,}|[A-Z])\\s+") %>%
  flatten %>%
  str_trim %>%
  tolower

Using readLines I load this text file into R. Then with stringr::str_extract_all, I can extract the variable names from this text file. The regular expression, ^[A-Z]+(\\d{1,}|[A-Z])\\s+ can seem complicated, but by breaking it up, it’ll be clear:

  • ^[A-Z]+: matches one or more uppercase letter, at the beginning of the line (hence the ^)
  • \\d{1,}: matches one or more digits
  • [A-Z]\\s+: matches one uppercase letter, followed by one or more spaces
  • (\\d{1,}|[A-Z])\\s+: matches one or more digits OR (the |) matches one uppercase letter, followed by one or more spaces

This regular expression matches only the variable names. By using ^ I only limit myself to the uppercase letters at the start of the line, which already removes a lot of unneeded lines from the text. Then, by matching numbers or letters, followed by spaces, I avoid matching strings such as VAR:. There’s probably a shorter way to write this regular expression, but since this one works, I stopped looking for another solution.

Now that I have a vector called column_names, I can baptize the columns in my dataset:

colnames(census_raw) <- column_names

I also add a column called caseid to the dataset, but it’s actually not really needed. But it made me look for and find rownames_to_column(), which can be useful:

census = census_raw %>%
  rownames_to_column("caseid")

Now I select the variables I need. I use dplyr::select() to select the columns I need (actually, I will remove some of these later for the purposes of the blog post, but will continue exploring them. Maybe write a part 2?):

census %<>%
  select(caseid, age, citizen, class, disabl1, disabl2, lang1, looking, fertil, hour89, hours, immigr,
         industry, means, occup, powpuma, powstate, pwgt1, race, ragechld, rearning,
         relat1, relat2, remplpar, rlabor, rpincome, rpob, rspouse, rvetserv, school, sex, tmpabsnt,
         travtime, week89, work89, worklwk, yearsch, yearwrk, yrsserv)

Now, I convert factor variables to factors and only relevel the race variable:

census %<>%
  mutate(race = case_when(race == 1 ~ "white",
                          race == 2 ~ "black",
                          !(race %in% c(1, 2)) ~ "other",
                          is.na(race) ~ NA_character_)) %>%
  filter(looking != 0) %>%
  mutate_at(vars(class, disabl1, disabl2, lang1, looking, fertil, immigr, industry, means,
                 occup, powstate, race, ragechld, remplpar, rlabor, rpob, rspouse,
                 rvetserv, school, sex, tmpabsnt, work89, worklwk, yearwrk),
            as.factor) %>%
  select(looking, age, class, disabl1, disabl2, lang1, fertil, immigr,
         race, ragechld, remplpar, rlabor, rpob, rspouse,
         rvetserv, school, sex, tmpabsnt, work89, worklwk, yearwrk, rpincome, rearning,
         travtime, week89, work89, hours, yearsch, yrsserv) %>%
  as_tibble

export(census, "regression_data.rds")

So the variable I want to predict is looking which has 2 levels (I removed the level 0, which stands for NA). I convert all the variables that are supposed to be factors into factors using mutate_at() and then reselect a subsample of the columns. census is now a tibble with 39 columns and 2458285 rows. I will train the forest on a subsample only, because with cross validation it would take forever on the whole dataset.

I run the training on another script, that I will then run using the Rscript command instead of running it from Spacemacs (yes, I don’t use RStudio at home but Spacemacs + ESS). Here’s the script:

library(caret)
library(doParallel)
library(rio)

reg_data = import("regression_data.rds")
janitor::tabyl(reg_data$looking)
reg_data$looking      n   percent
1                1  75792 0.1089562
2                2 619827 0.8910438

90% of the individuals in the sample are not looking for a new job. For training purposes, I will only use 50000 observations instead of the whole sample. I’m already thinking about writing another blog post where I show how to use the whole data. But 50000 observations should be more than enough to have a pretty nice model. However, having 90% of observations belonging to a single class can cause problems with the model; the model might predict that everyone should belong to class 2 and in doing so, the model would be 90% accurate! Let’s ignore this for now, but later I am going to tackle this issue with a procedure calleds SMOTE.

set.seed(1234)
sample_df = sample_n(reg_data, 50000)

Now, using caret::trainIndex(), I partition the data into a training sample and a testing sample:

trainIndex = createDataPartition(sample_df$looking, p = 0.8,
                                 list = FALSE,
                                 times = 1)

train_data = sample_df[trainIndex, ]
test_data = sample_df[-trainIndex, ]

I also save the testing data to disk, because when the training is done I’ll lose my R session (remember, I’ll run the training using Rscript):

saveRDS(test_data, "test_data.rds")

Before training the model, I’ll change some options; I’ll do 5-fold cross validation that I repeat 5 times. This will further split the training set into training/testing sets which will increase my confidence in the metrics that I get from the training. This will ensure that the best model really is the best, and not a fluke resulting from the splitting of the data that I did beforehand. Then, I will test the best model on the testing data from above:

fitControl <- trainControl(
  method = "repeatedcv",
  number = 5,
  repeats = 5)

A very nice feature from the caret package is the possibility to make the training in parallel. For this, load the doParallel package (which I did above), and then register the number of cores you want to use for training with makeCluster(). You can replace detectCores() by the number of cores you want to use:

cl = makeCluster(detectCores())
registerDoParallel(cl)

Finally, we can train the model:

fit_caret = train(looking ~ .,
                  data = train_data,
                  trainControl = fitControl)

Because it takes around 1 and a half hours to train, I save the model to disk using saveRDS():

saveRDS(fit_caret, "model_unbalanced.rds")

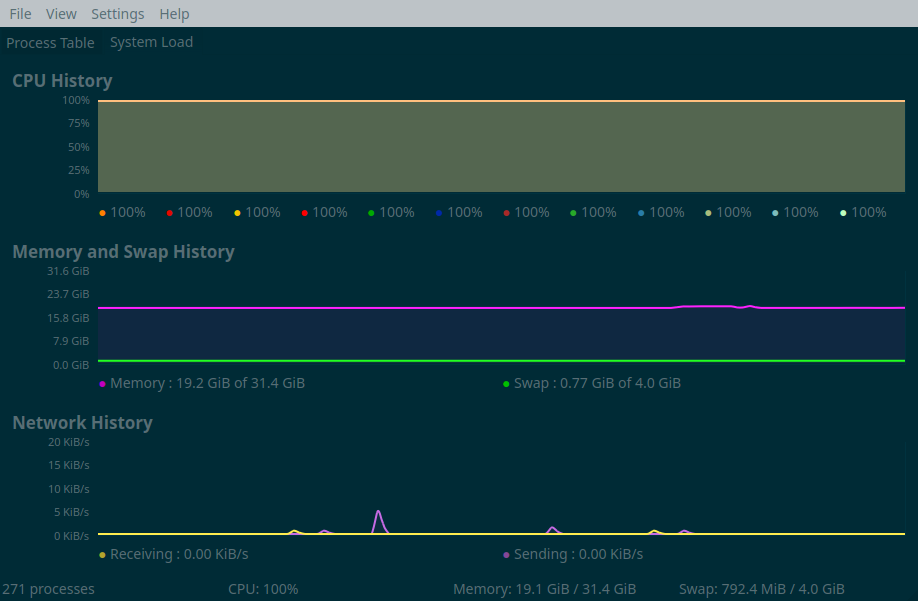

The picture below shows all the cores from my computer running and RAM usage being around 20gb during the training process:

And this the results of training the random forest on the unbalanced data:

model_unbalanced = readRDS("model_unbalanced.rds")

test_data = readRDS("test_data.rds")

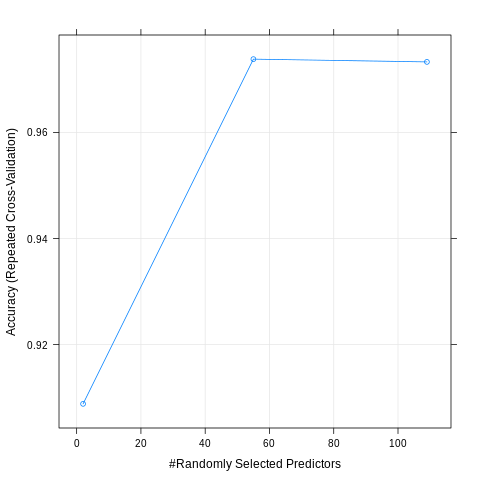

plot(model_unbalanced)

preds = predict.train(model_unbalanced, newdata = test_data)

confusionMatrix(preds, reference = test_data$looking)

Confusion Matrix and Statistics

Reference
Prediction     1     2
1  1287   112
2   253 12348

Accuracy : 0.9739
95% CI : (0.9712, 0.9765)
    No Information Rate : 0.89
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.8613
 Mcnemar's Test P-Value : 2.337e-13

            Sensitivity : 0.83571
            Specificity : 0.99101
         Pos Pred Value : 0.91994
         Neg Pred Value : 0.97992
             Prevalence : 0.11000
         Detection Rate : 0.09193
   Detection Prevalence : 0.09993
      Balanced Accuracy : 0.91336

       'Positive' Class : 1

If someone really is looking for a job, the model is able to predict it correctly 92% of the times and 98% of the times if that person is not looking for a job. It’s slightly better than simply saying than no one is looking for a job, which would be right 90% of the times, but not great either.

To train to make the model more accurate in predicting class 1, I will resample the training set, but by downsampling class 2 and upsampling class 1. This can be done with the function SMOTE() from the {DMwR} package. However, the testing set should have the same distribution as the population, so I should not apply SMOTE() to the testing set. I will resplit the data, but this time with a 95/5 % percent split; this way I have 5% of the original dataset used for testing, I can use SMOTE() on the 95% remaining training set. Because SMOTEing takes some time, I save the SMOTEd training set using readRDS() for later use:

reg_data = import("regression_data.rds")


set.seed(1234)
trainIndex = createDataPartition(reg_data$looking, p = 0.95,
                                 list = FALSE,
                                 times = 1)

test_data = reg_data[-trainIndex, ]

saveRDS(test_data, "test_smote.rds")


# Balance training set
train_data = reg_data[trainIndex, ]

train_smote = DMwR::SMOTE(looking ~ ., train_data, perc.over = 100, perc.under=200)

saveRDS(train_smote, "train_smote.rds")

The testing set has 34780 observations and below you can see the distribution of the target variable, looking:

janitor::tabyl(test_data$looking)
  test_data$looking     n   percent
1                 1  3789 0.1089419
2                 2 30991 0.8910581

Here are the results:

model_smote = readRDS("model_smote.rds")

test_smote = readRDS("test_smote.rds")

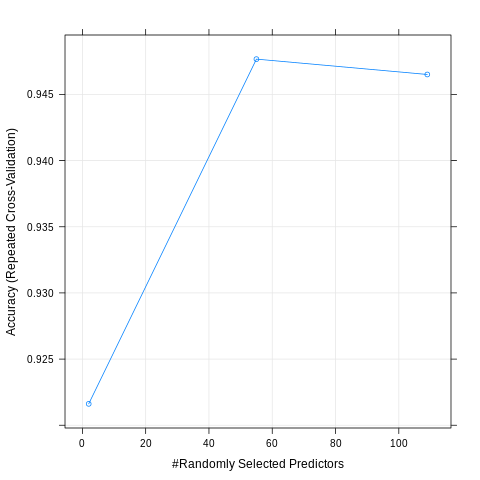

plot(model_smote)

preds = predict.train(model_smote, newdata = test_smote)

confusionMatrix(preds, reference = test_smote$looking)
Confusion Matrix and Statistics

Reference
Prediction     1     2
1  3328  1142
2   461 29849

Accuracy : 0.9539
95% CI : (0.9517, 0.9561)
    No Information Rate : 0.8911
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.78
 Mcnemar's Test P-Value : < 2.2e-16

            Sensitivity : 0.87833
            Specificity : 0.96315
         Pos Pred Value : 0.74452
         Neg Pred Value : 0.98479
             Prevalence : 0.10894
         Detection Rate : 0.09569
   Detection Prevalence : 0.12852
      Balanced Accuracy : 0.92074

       'Positive' Class : 1

The balanced accuracy is higher, but unlike what I expected (and hoped), this model is worse in predicting class 1! I will be trying one last thing; since I have a lot of data at my disposal, I will simply sample 25000 observations where the target variable looking equals 1, and then sample another 25000 observations where the target variable equals 2 (without using SMOTE()). Then I’ll simply bind the rows and train the model on that:

reg_data = import("regression_data.rds")


set.seed(1234)
trainIndex = createDataPartition(reg_data$looking, p = 0.95,
                                 list = FALSE,
                                 times = 1)

test_data = reg_data[-trainIndex, ]

saveRDS(test_data, "test_up_down.rds")


# Balance training set
train_data = reg_data[trainIndex, ]

train_data1 = train_data %>%
  filter(looking == 1)

set.seed(1234)
train_data1 = sample_n(train_data1, 25000)


train_data2 = train_data %>%
  filter(looking == 2)

set.seed(1234)
train_data2 = sample_n(train_data2, 25000)

train_up_down = bind_rows(train_data1, train_data2)


fitControl <- trainControl(
  method = "repeatedcv",
  number = 5,
  repeats = 5)

cl = makeCluster(detectCores())
registerDoParallel(cl)

fit_caret = train(looking ~ .,
                  data = train_up_down,
                  trControl = fitControl,
                  preProcess = c("center", "scale"))

saveRDS(fit_caret, "model_up_down.rds")

And here are the results:

model_up_down = readRDS("model_up_down.rds")

test_up_down = readRDS("test_up_down.rds")

plot(model_up_down)

preds = predict.train(model_up_down, newdata = test_up_down)

confusionMatrix(preds, reference = test_up_down$looking)
Confusion Matrix and Statistics

Reference
Prediction     1     2
1  3403  1629
2   386 29362

Accuracy : 0.9421
95% CI : (0.9396, 0.9445)
    No Information Rate : 0.8911
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.7391
 Mcnemar's Test P-Value : < 2.2e-16

            Sensitivity : 0.89813
            Specificity : 0.94744
         Pos Pred Value : 0.67627
         Neg Pred Value : 0.98702
             Prevalence : 0.10894
         Detection Rate : 0.09784
   Detection Prevalence : 0.14468
      Balanced Accuracy : 0.92278

       'Positive' Class : 1

Looks like it’s not much better than using SMOTE()!

There are several ways I could achieve better predictions; tuning the model is one possibility, or perhaps going with another type of model altogether. I will certainly come back to this dataset in future blog posts!

Using the best model, let’s take a look at which variables are the most important for predicting job search:

> varImp(model_unbalanced)
rf variable importance

only 20 most important variables shown (out of 109)

Overall
rlabor3   100.0000
rlabor6    35.2702
age         6.3758
rpincome    6.2964
tmpabsnt1   5.8047
rearning    5.3560
week89      5.2863
tmpabsnt2   4.0195
yearsch     3.4892
tmpabsnt3   1.7434
work892     1.3231
racewhite   0.9002
class1      0.7866
school2     0.7117
yearwrk2    0.6970
sex1        0.6955
disabl12    0.6809
lang12      0.6619
rpob23      0.6507
rspouse6    0.6330

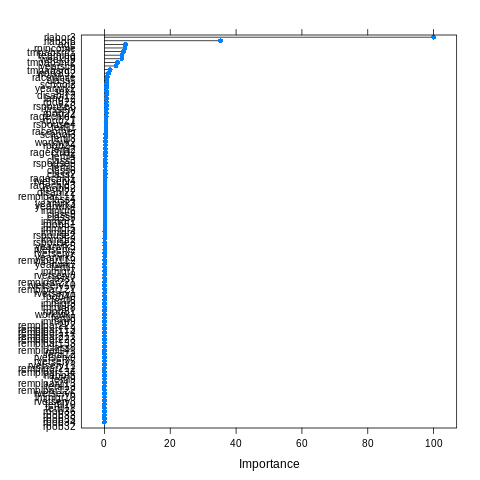

It’s also possible to have a plot of the above:

plot(varImp(model_unbalanced))

To make sense of this, we have to read the description of the features here.

rlabor3 is the most important variable, and means that the individual is unemployed. rlabor6 means not in the labour force. Then the age of the individual as well as the individual’s income play a role. tmpabsnt is a variable that equals 1 if the individual is temporary absent from work, due to a layoff. All these variables having an influence on the probability of looking for a job make sense, but looks like a very simple model focusing on just a couple of variables would make as good a job as the random forest.
