Dealing with heteroskedasticity; regression with robust standard errors using R Forecasting my weight with R Getting data from pdfs using the pdftools package Imputing missing values in parallel using {furrr} Missing data imputation and instrumental variables regression: the tidy approach {pmice}, an experimental package for missing data imputation in parallel using {mice} and {furrr} Building formulae Functional peace of mind Get basic summary statistics for all the variables in a data frame Getting {sparklyr}, {h2o}, {rsparkling} to work together and some fun with bash Importing 30GB of data into R with sparklyr Introducing brotools It's lists all the way down It's lists all the way down, part 2: We need to go deeper Keep trying that api call with purrr::possibly() Lesser known dplyr 0.7* tricks Lesser known dplyr tricks Lesser known purrr tricks Make ggplot2 purrr Mapping a list of functions to a list of datasets with a list of columns as arguments Predicting job search by training a random forest on an unbalanced dataset Teaching the tidyverse to beginners Why I find tidyeval useful tidyr::spread() and dplyr::rename_at() in action Easy peasy STATA-like marginal effects with R Functional programming and unit testing for data munging with R available on Leanpub How to use jailbreakr My free book has a cover! Work on lists of datasets instead of individual datasets by using functional programming Method of Simulated Moments with R New website! Nonlinear Gmm with R - Example with a logistic regression Simulated Maximum Likelihood with R Bootstrapping standard errors for difference-in-differences estimation with R Careful with tryCatch Data frame columns as arguments to dplyr functions Export R output to a file I've started writing a 'book': Functional programming and unit testing for data munging with R Introduction to programming econometrics with R Merge a list of datasets together Object Oriented Programming with R: An example with a Cournot duopoly R, R with Atlas, R with OpenBLAS and Revolution R Open: which is fastest? Read a lot of datasets at once with R Unit testing with R Update to Introduction to programming econometrics with R Using R as a Computer Algebra System with Ryacas

Missing data imputation and instrumental variables regression: the tidy approach

In this blog post I will discuss missing data imputation and instrumental variables regression. This is based on a short presentation I will give at my job. You can find the data used here on this website: http://eclr.humanities.manchester.ac.uk/index.php/IV_in_R

The data is used is from Wooldridge’s book, Econometrics: A modern Approach. You can download the data by clicking here.

This is the variable description:

 1. inlf                     =1 if in labor force, 1975
 2. hours                    hours worked, 1975
 3. kidslt6                  # kids < 6 years
 4. kidsge6                  # kids 6-18
 5. age                      woman's age in yrs
 6. educ                     years of schooling
 7. wage                     estimated wage from earns., hours
 8. repwage                  reported wage at interview in 1976
 9. hushrs                   hours worked by husband, 1975
10. husage                   husband's age
11. huseduc                  husband's years of schooling
12. huswage                  husband's hourly wage, 1975
13. faminc                   family income, 1975
14. mtr                      fed. marginal tax rate facing woman
15. motheduc                 mother's years of schooling
16. fatheduc                 father's years of schooling
17. unem                     unem. rate in county of resid.
18. city                     =1 if live in SMSA
19. exper                    actual labor mkt exper
20. nwifeinc                 (faminc - wage*hours)/1000
21. lwage                    log(wage)
22. expersq                  exper^2

The goal is to first impute missing data in the data set, and then determine the impact of one added year of education on wages. If one simply ignores missing values, bias can be introduced depending on the missingness mechanism. The second problem here is that education is likely to be endogeneous (and thus be correlated to the error term), as it is not randomly assigned. This causes biased estimates and may lead to seriously wrong conclusions. So missingness and endogeneity should be dealt with, but dealing with both issues is more of a programming challenge than an econometrics challenge. Thankfully, the packages contained in the {tidyverse} as well as {mice} will save the day!

If you inspect the data, you will see that there are no missing values. So I will use the {mice} package to first ampute the data (which means adding missing values). This, of course, is done for education purposes. If you’re lucky enough to not have missing values in your data, you shouldn’t add them!

Let’s load all the packages needed:

library(tidyverse)
library(AER)
library(naniar)
library(mice)

So first, let’s read in the data, and ampute it:

wages_data <- read_csv("http://eclr.humanities.manchester.ac.uk/images/5/5f/Mroz.csv")
## Parsed with column specification:
## cols(
##   .default = col_integer(),
##   wage = col_character(),
##   repwage = col_double(),
##   huswage = col_double(),
##   mtr = col_double(),
##   unem = col_double(),
##   nwifeinc = col_double(),
##   lwage = col_character()
## )
## See spec(...) for full column specifications.

First, I only select the variables I want to use and convert them to the correct class:

wages_data <- wages_data %>%
    select(wage, educ, fatheduc, motheduc, inlf, hours,
               kidslt6, kidsge6, age, huswage,
               mtr, unem, city, exper) %>%
    mutate_at(vars(kidslt6, kidsge6, hours, educ, age, wage, huswage, mtr,
                    motheduc, fatheduc, unem, exper), as.numeric) %>%
    mutate_at(vars(city, inlf), as.character)
## Warning in evalq(as.numeric(wage), <environment>): NAs introduced by
## coercion

In the data, some women are not in the labour force, and thus do not have any wages; meaning they should have a 0 there. Instead, this is represented with the following symbol: “.”. So I convert these dots to 0. One could argue that the wages should not be 0, but that they’re truly missing. This is true, and there are ways to deal with such questions (Heckman’s selection model for instance), but this is not the point here.

wages_data <- wages_data %>%
    mutate(wage = ifelse(is.na(wage), 0, wage))

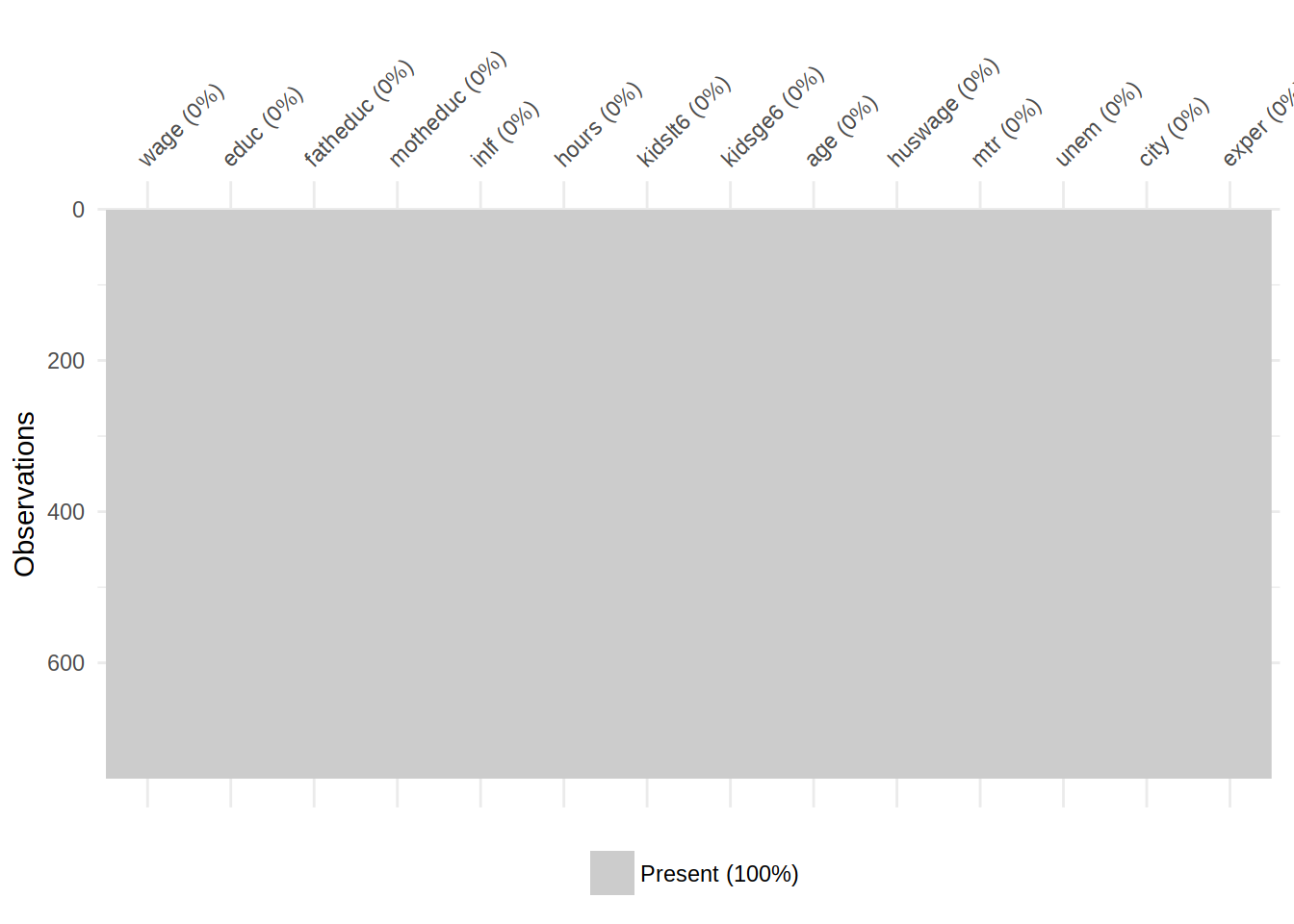

Let’s double check if there are any missing values in the data, using naniar::vis_miss():

vis_miss(wages_data)

Nope! Let’s ampute it:

wages_mis <- ampute(wages_data)$amp
## Warning: Data is made numeric because the calculation of weights requires
## numeric data

ampute() returns an object where the amp element is the amputed data. This is what I save into the new variable wages_mis.

Let’s take a look:

vis_miss(wages_mis)

Ok, so now we have missing values. Let’s use the recently added mice::parlmice() function to impute the dataset, in parallel:

imp_wages <- parlmice(data = wages_mis, m = 10, maxit = 20, cl.type = "FORK")

For reproducibility, I save these objects to disk:

write_csv(wages_mis, "wages_mis.csv")

saveRDS(imp_wages, "imp_wages.rds")

As a sanity check, let’s look at the missingness pattern for the first completed dataset:

vis_miss(complete(imp_wages))

mice::parlmice() was able to impute the dataset. I imputed it 10 times, so now I have 10 imputed datasets. If I want to estimate a model using this data, I will need to do so 10 times. This is where the tidyverse comes into play. First, let’s combine all the 10 imputed datasets into one long dataset, with an index to differentiate them. This is done easily with mice::complete():

imp_wages_df <- mice::complete(imp_wages, "long")

Let’s take a look at the data:

head(imp_wages_df)
##   .imp .id   wage educ fatheduc motheduc inlf hours kidslt6 kidsge6 age
## 1    1   1 3.3540   12        7       12    1  1610       1       0  32
## 2    1   2 1.3889   12        7        7    1  1656       0       2  30
## 3    1   3 4.5455   12        7       12    1  1980       0       3  35
## 4    1   4 1.0965   12        7        7    1   456       0       3  34
## 5    1   5 4.5918   14       14       12    1  1568       1       2  31
## 6    1   6 4.7421   12        7       14    1  2032       0       0  54
##   huswage    mtr unem city exper
## 1  4.0288 0.7215  5.0    0    14
## 2  8.4416 0.6615 11.0    1     5
## 3  3.5807 0.6915  5.0    0    15
## 4  3.5417 0.7815  5.0    0     6
## 5 10.0000 0.6215  9.5    1    14
## 6  4.7364 0.6915  7.5    1    33

As you can see, there are two new columns, .id and .imp. .imp equals i means that it is the ith imputed dataset.

Because I have 0’s in my dependent variable, I will not log the wages but instead use the Inverse Hyperbolic Sine transformation. Marc F. Bellemare wrote a nice post about it here.

ihs <- function(x){
    log(x + sqrt(x**2 + 1))
}

I can now apply this function, but first I have to group by .imp. Remember, these are 10 separated datasets. I also create the experience squared:

imp_wages_df <- imp_wages_df %>%
    group_by(.imp) %>%
    mutate(ihs_wage = ihs(wage),
           exper2 = exper**2)

Now comes some tidyverse magic. I will create a new dataset by using the nest() function from tidyr.

(imp_wages <- imp_wages_df %>%
    group_by(.imp) %>%
    nest())
## # A tibble: 10 x 2
##     .imp data
##    <int> <list>
##  1     1 <tibble [753 × 17]>
##  2     2 <tibble [753 × 17]>
##  3     3 <tibble [753 × 17]>
##  4     4 <tibble [753 × 17]>
##  5     5 <tibble [753 × 17]>
##  6     6 <tibble [753 × 17]>
##  7     7 <tibble [753 × 17]>
##  8     8 <tibble [753 × 17]>
##  9     9 <tibble [753 × 17]>
## 10    10 <tibble [753 × 17]>

As you can see, imp_wages is now a dataset with two columns: .imp, indexing the imputed datasets, and a column called data, where each element is itself a tibble! data is a so-called list-column. You can read more about it on the purrr tutorial written by Jenny Bryan.

Estimating a model now is easy, if you’re familiar with purrr. This is how you do it:

imp_wages_reg = imp_wages %>%
    mutate(lin_reg = map(data,
                         ~lm(ihs_wage ~ educ + inlf + hours +
                                 kidslt6 + kidsge6 + age + huswage +
                                 mtr + unem + city + exper + exper2,
                             data = .)))

Ok, so what happened here? imp_wages is a data frame, so it’s possible to add a column to it with mutate(). I call that column lin_reg and use map() on the column called data (remember, this column is actually a list of data frame objects, and map() takes a list as an argument, and then a function or formula) with the following formula:

~lm(ihs_wage ~ educ + inlf + hours +
        kidslt6 + kidsge6 + age + huswage +
        mtr + unem + city + exper + exper2,
    data = .)

This formula is nothing more that a good old linear regression. The last line data = . means that the data to be used inside lm() should be coming from the list called data, which is the second column of imp_wages. As I’m writing these lines, I realize it is confusing as hell. But I promise you that learning to use purrr is a bit like learning how to use a bicycle. Very difficult to explain, but once you know how to do it, it feels super natural. Take some time to play with the lines above to really understand what happened.

Now, let’s take a look at the result:

imp_wages_reg
## # A tibble: 10 x 3
##     .imp data                lin_reg
##    <int> <list>              <list>
##  1     1 <tibble [753 × 17]> <S3: lm>
##  2     2 <tibble [753 × 17]> <S3: lm>
##  3     3 <tibble [753 × 17]> <S3: lm>
##  4     4 <tibble [753 × 17]> <S3: lm>
##  5     5 <tibble [753 × 17]> <S3: lm>
##  6     6 <tibble [753 × 17]> <S3: lm>
##  7     7 <tibble [753 × 17]> <S3: lm>
##  8     8 <tibble [753 × 17]> <S3: lm>
##  9     9 <tibble [753 × 17]> <S3: lm>
## 10    10 <tibble [753 × 17]> <S3: lm>

imp_wages_reg now has a third column called lin_reg where each element is a linear model, estimated on the data from the data column! We can now pool the results of these 10 regressions using mice::pool():

pool_lin_reg <- pool(imp_wages_reg$lin_reg)

summary(pool_lin_reg)
##                  estimate    std.error  statistic       df      p.value
## (Intercept)  1.2868701172 3.214473e-01  4.0033628 737.9337 6.876133e-05
## educ         0.0385310276 8.231906e-03  4.6806931 737.9337 3.401935e-06
## inlf         1.8845418354 5.078235e-02 37.1101707 737.9337 0.000000e+00
## hours       -0.0001164143 3.011378e-05 -3.8658143 737.9337 1.204773e-04
## kidslt6     -0.0438925013 3.793152e-02 -1.1571510 737.9337 2.475851e-01
## kidsge6     -0.0117978229 1.405226e-02 -0.8395678 737.9337 4.014227e-01
## age         -0.0030084595 2.666614e-03 -1.1281946 737.9337 2.596044e-01
## huswage     -0.0231736955 5.607364e-03 -4.1327255 737.9337 3.995866e-05
## mtr         -2.2109176781 3.188827e-01 -6.9333267 737.9337 8.982592e-12
## unem         0.0028775444 5.462973e-03  0.5267360 737.9337 5.985352e-01
## city         0.0157414671 3.633755e-02  0.4332011 737.9337 6.649953e-01
## exper        0.0164364027 6.118875e-03  2.6861806 737.9337 7.389936e-03
## exper2      -0.0002022602 1.916146e-04 -1.0555575 737.9337 2.915159e-01

This function averages the results from the 10 regressions and computes correct standard errors. This is based on Rubin’s rules (Rubin, 1987, p. 76). As you can see, the linear regression indicates that one year of added education has a positive, significant effect of log wages (they’re not log wages, I used the IHS transformation, but log wages just sounds better than inverted hyperbolic sined wages). This effect is almost 4%.

But education is not randomly assigned, and as such might be endogenous. This is where instrumental variables come into play. An instrument is a variables that impacts the dependent variable only through the endogenous variable (here, education). For example, the education of the parents do not have a direct impact over one’s wage, but having college-educated parents means that you are likely college-educated yourself, and thus have a higher wage that if you only have a high school diploma.

I am thus going to instrument education with both parents’ education:

imp_wages_reg = imp_wages_reg %>%
    mutate(iv_reg = map(data,
                         ~ivreg(ihs_wage ~ educ + inlf + hours +
                                 kidslt6 + kidsge6 + age + huswage +
                                 mtr + unem + city + exper + exper2 |.-educ + fatheduc + motheduc,
                             data = .)))

The only difference from before is the formula:

~ivreg(ihs_wage ~ educ + inlf + hours +
           kidslt6 + kidsge6 + age + huswage +
           mtr + unem + city + exper + exper2 |.-educ + fatheduc + motheduc,
       data = .)
## ~ivreg(ihs_wage ~ educ + inlf + hours + kidslt6 + kidsge6 + age +
##     huswage + mtr + unem + city + exper + exper2 | . - educ +
##     fatheduc + motheduc, data = .)

Instead of lm() I use AER::ivreg() and the formula has a second part, after the | symbol. This is where I specify that I instrument education with the parents’ education.

imp_wages_reg now looks like this:

imp_wages_reg
## # A tibble: 10 x 4
##     .imp data                lin_reg  iv_reg
##    <int> <list>              <list>   <list>
##  1     1 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  2     2 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  3     3 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  4     4 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  5     5 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  6     6 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  7     7 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  8     8 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
##  9     9 <tibble [753 × 17]> <S3: lm> <S3: ivreg>
## 10    10 <tibble [753 × 17]> <S3: lm> <S3: ivreg>

Let’s take a look at the results:

pool_iv_reg <- pool(imp_wages_reg$iv_reg)

summary(pool_iv_reg)
##                  estimate    std.error  statistic       df      p.value
## (Intercept)  2.0091904157 5.146812e-01  3.9037568 737.9337 1.033832e-04
## educ         0.0038859137 2.086592e-02  0.1862326 737.9337 8.523136e-01
## inlf         1.9200207113 5.499457e-02 34.9129122 737.9337 0.000000e+00
## hours       -0.0001313866 3.157375e-05 -4.1612608 737.9337 3.537881e-05
## kidslt6     -0.0234593391 4.000689e-02 -0.5863824 737.9337 5.577979e-01
## kidsge6     -0.0123239220 1.422241e-02 -0.8665145 737.9337 3.864897e-01
## age         -0.0040874625 2.763340e-03 -1.4791748 737.9337 1.395203e-01
## huswage     -0.0242737100 5.706497e-03 -4.2536970 737.9337 2.373189e-05
## mtr         -2.6385172445 3.998419e-01 -6.5989008 737.9337 7.907430e-11
## unem         0.0047331976 5.622137e-03  0.8418859 737.9337 4.001246e-01
## city         0.0255647706 3.716783e-02  0.6878197 737.9337 4.917824e-01
## exper        0.0180917073 6.258779e-03  2.8906127 737.9337 3.957817e-03
## exper2      -0.0002291007 1.944599e-04 -1.1781381 737.9337 2.391213e-01

As you can see, education is not statistically significant anymore! This is why it is quite important to think about endogeneity issues. However, it is not always very easy to find suitable instruments. A series of tests exist to determine if you have relevant and strong instruments, but this blog post is already long enough. I will leave this for a future blog post.

If you found this blog post useful, you might want to follow me on twitter for blog post updates.
